D02 24mm Width 200dpi Thermal Transfer Overprinter with 120PPM Print Speed for Intermittent Packaging Machines

Product Categories

Shanghai Dikai Coding Technology Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

D02 24mm Width 200dpi Thermal Transfer Overprinter with 120PPM Print Speed for Intermittent Packaging Machines

Name: D02 24mm Width 200dpi Thermal Transfer Overprinter with 120PPM Print Speed for Intermittent Packaging Machines
Brand: DIKAI
Price: 2 USD

Quality D02 24mm Width 200dpi Thermal Transfer Overprinter with 120PPM Print Speed for Intermittent Packaging Machines wholesale

Place of Origin : Shanghai, China

Brand Name : DIKAI

Certification : CE; ISO9001:2008; ROHS

MOQ : 1

Price : $2,200-2,500

Print Head : 24mm, Kyocera; 200DPI

Print Area : 24mm*40mm

Ribbon Size : 25mm*500m

Print Speed : up to 120PPM

Voltage : AC110~220V, 50/60Hz, 120W

Operation Temperature : 0-40℃

Relative Humidity : 10%~95%(non-condensing)

Weight : Print head: 5kg, Operate handle: 0.4kg

Dimension : Print Unit: 210mm*210mm*185mm, Controller box: 233mm*180mm*128mm

Print Contents : Barcode, QR Code, Logo, Variable Information, Date & Time, Table, etc.

Print Frequency : intermittent: up to 120PPM

Core Components : PCB

Driven Type : Electric

Automatic Grade : automatic

Packaging Material : Paper

Contact Now

Product Overview

D02 Thermal Transfer Overprinter

D02 Thermal Transfer Overprinter for Vertical Packer was developed by DIKAI own R&D team with 2 national patents. It can be installed on Intermittent package machines & Labeling machine to print barcode, QR code, Logo, Images, Variable data, Tables, Nutrition List, Serial Numbers etc. on package films in all kinds of print fonts. Its 24mm, 200DPI printhead provides high quality prints for customers satification. With D02 Thermal Transfer Overprinter for Vertical Packer, you can largely reduce the print cost, we depend on our D-SERIES TTO machines to popularize the use of TTO in the world and looking forward to your enquiry for futher details!

Features

-- Continuous & Intermittent
-- 24mm Kyocera Printhead;
-- real time, variable date, etc.
-- 200 DPI
-- Low cost
-- Easy to operate

D02 24mm Width 200dpi Thermal Transfer Overprinter with 120PPM Print Speed for Intermittent Packaging Machines

32mm Printhead

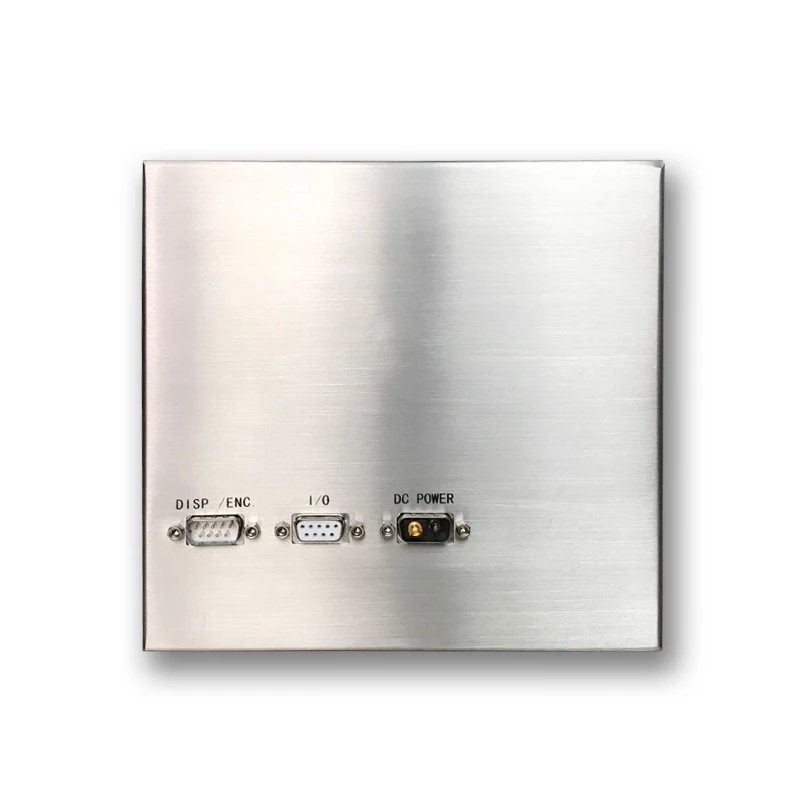

Interface

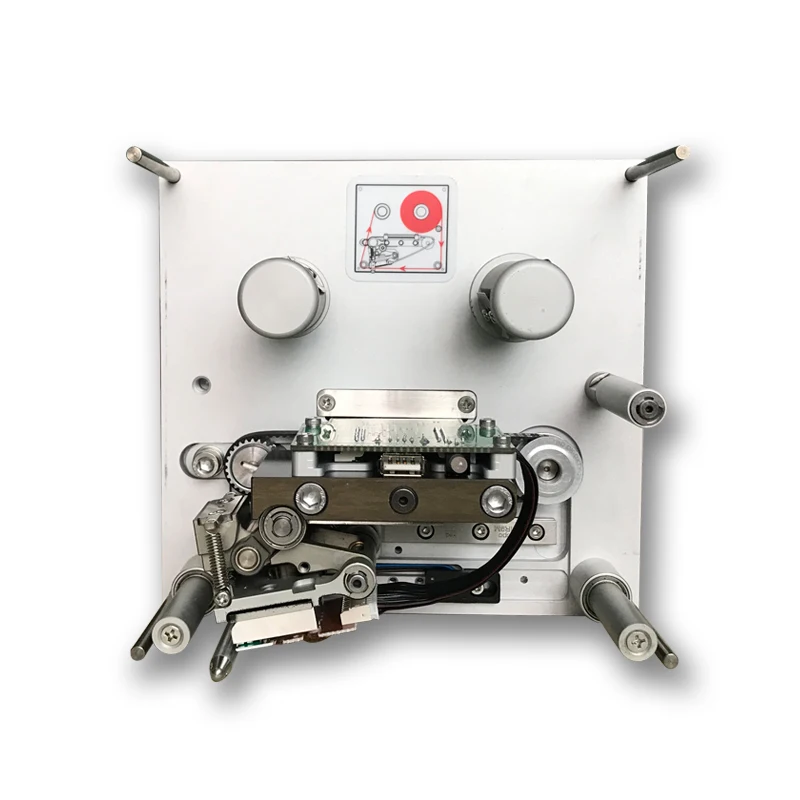

Internal Structure

Product Specification

Specification
Print Head	24mm, Kyocera; 200DPI
Print Area	Intermittent: 24mm*40mm
Ribbon Size	25mm*500m
Print Frequency	intermittent: up to 120PPM
Power	AC110~220V, 50/60Hz, 120W
Environmental Operation Temperature	0-40℃
Relative Humidity	10%~95%(non-condensing)
Air Supply	No need
Weight	Print head: 5kg, Operate handle: 0.4kg
Dimension(LWH)	Print Unit: 210mm210mm185mm Controller box: 233mm180mm128mm

Attention: The prices shown on Alibaba are not final prices, please consult us for proper solutions for you.

Packaging & Shipping

1.Standard wooden cases with sponge filled inside for packing protection 2.The Wooden case is fumigation free which is suitable by sea & by air. 3.Customized Packing as per Customer's requirement.

After Sales Service

Technical Supports

--R&D supports;

--Operation Manual Guidance

--Within 24-hour professional online supports

--Video supports

--Possible onsite supports...

Company Introduction

Shanghai Dikai Coding Industry Co.,Ltd

Shanghai Dikai Coding Industry Co., Ltd was founded in 1995, and Dikai has dedicated itself to comprehensive coding solutions provider with R&D, innovation, manufacturing, sales & service of quality coding machines & consumables like TTO, Ink Roll Coder, TIJ, CIJ, Laser, Hot Stamp Coder, Carton Coding Machine, Ink Roll, Ribbon, etc.

Our headquarters is located in Shanghai, China, we have 16 branches offices and many authorized distributors in domestic, serving more 4,000 end users, over 200 packing machinemanufacturers. Our products have been exported to more than 100 countries and regions since 2006.

DIKAI Vision: To be renowned ID system integrator in the world
DIKAI Values: Customer's benefit comes first

Office

Inside Company

Warehouse

Factory

1. 5S management 2. Strict quality control

3. Clear operate instructions 4. Regular training of workers

TTO Workshop

Over 1000 sets per month

Ink Roll Coder Workshop

Over 1500 sets per month

Laser Workshop

Over 80 sets per month

Certification

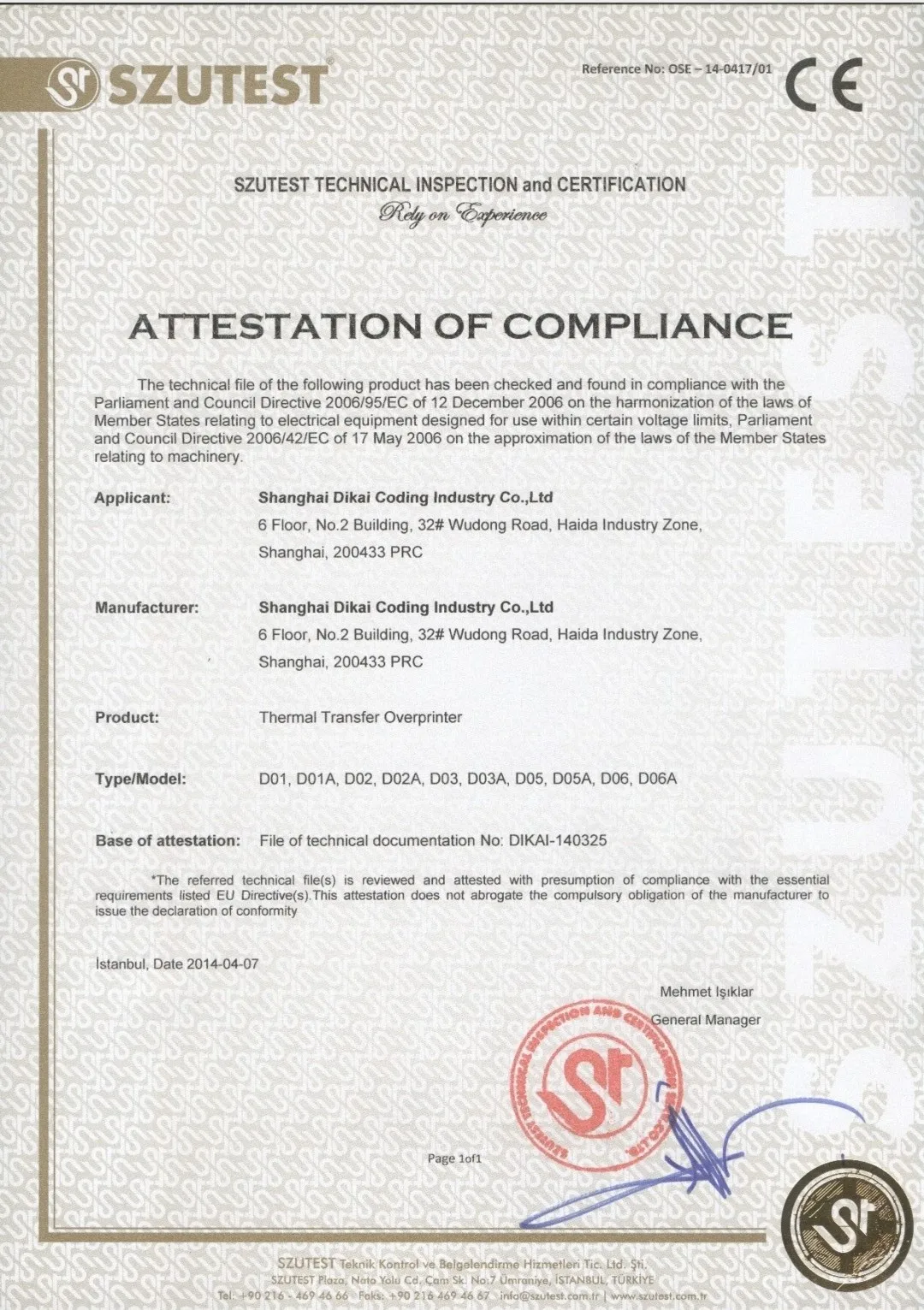

CE Certification

ISO Certification

Exhibition

Allpack Indonesia

Andina Pack

ICE CREAM CHINA

FAQ

1.Why choose Dikai?
-- Our company has dedicated to development, manufacturing and sales of qualified coding machines and consumables for 25 years. Meanwhile, we commit ourselves to satisfy every customers' different needs in coding and marking area.

2.What’s the regular lead time for Dikai Products?
--Lead time for all Dikai good is 1-2 weeks after order confirmation. For the stocked goods, delivery can be made in 2 working days.

3.How do you ship and package the products?
--We use standard wooden cases with sponge filled inside for packing protection and the wooden case is fumigation free which is suitable by sea & by air, we also can provide customized packing if you have special requirement.

4.What's the warranty of Dikai goods?

--Regularly 12 months after leaving Dikai Warehouse.

5.How about your after-sales service?
--For the countries where we have distributors, we depend on our distributor to do after sales services. Dikai also provide online technical services besides of continuously upgraded video supports.
